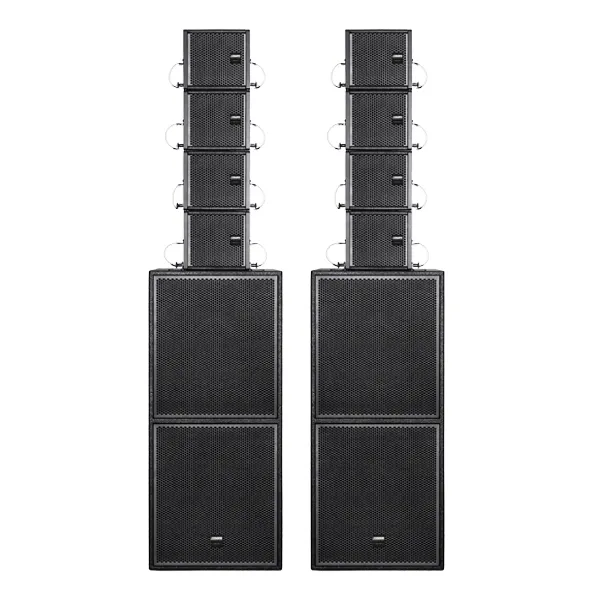

DSP1580 Active Line Array PA Speaker System - 翻译中...

Whole System

MAX. SPL.

132dB

Sensitivity

98dB

Full-Range Speaker

Frequency Response

75Hz-20KHz (±3dB)

Sensitivity

95dB/W (lm)

MAX. SPL.

120dB MAX.

Nominal Impedance

8Ω

Nominal Power

200W

Peak Power

800W Peak

Dispersion (H×V)

140°×30°

Crossover Point

Built-in crossover 2KHz

System Type

Passive 2-way coaxial line array

HF drivers

1×1.5" HF driver (38mm voice coil)

MF drivers

1×6.5" MF driver (38mm voice coil)

Paint

Scratch-resistant black speckled paint

Dimensions (H×W×D)

230×270×230 mm

Net Weight

5.5kg

Dual 15-Inch Subwoofer

Frequency Response

30Hz-200Hz (±3dB)

Sensitivity

95dB/W (lm)

MAX. SPL.

125dB MAX.

Nominal Impedance

8Ω

Nominal Power

1200W

Peak Power

4800W

Amplifier Power

1200W+800W+800W (3 channels)

LF Drivers

2×15" LF drivers (75mm voice coil)

Dimensions (H×W×D)

1000×445×455 mm

Net Weight

44kg
