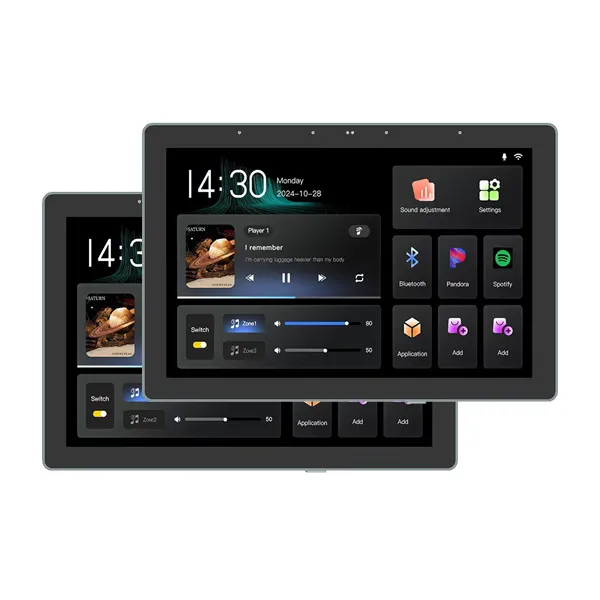

DM858U 8×10W 8-Inch In-Wall Smart Background Music Amplifier - 翻译中...

CPU

Quad-core Cortex @1.6GHz

System

Android 11

Screen

8-inch 1280*800 multi-touch screen

RAM

2G

ROM

16G

Wired Network

Support

Wi-Fi

802.11b/g/n, 150Mbps 2.4GHz

Zigbee

\

802.15.4PHY/MAC Zigbee zigbee protocol stack

RS485

Support

Wireless Protocol

WiFi, Bluetooth

WiFi, Bluetooth, Zigbee

Gateway Function

\

Features Zigbee gateway capability, supporting connection to 50+ sub-devices and enabling seamless control of various Tuya ecosystem devices.

Music Playback

Supports music playback via Bluetooth, TF Card, USB drive, and AUX input.

Speaker Output

8×(10-25W) (MAX.) (Specific output depends on selected hardware configuration)

Output Impedance

4-8Ω

Amplifier Parameters

Frequency Response

20Hz-20kHz

S/N Ratio

98dB

Power Input

AC110~250V, 50/60Hz

Installation Method

Surface-mounted with pre-installed box

Operating Temperature

0℃~40℃

Operating Humidity

5%~90% RH, non-condensing

Junction Box Dimensions

177×104×69mm

Product Dimensions

198.2×133×55.7mm

Package Dimensions

300×175×105mm

Net Weight

0.8kg

Gross Weight

1.2kg
