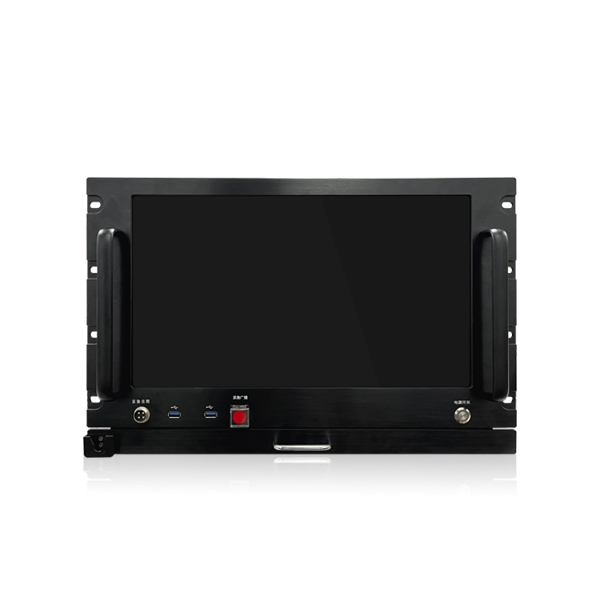

WEP5501 Cloud Broadcast System - 翻译中...

ডাউন

● A fully-featured Cloud Broadcast System.
● Fully digital transmission with expandable network transmission capability, featuring approximately 200ms delay for public network broadcasts and 40ms delay for LAN broadcasts.
● Leverages existing network infrastructure for rapid deployment and cost efficiency, achieving multi-line transmission convergence.
● Breaks through the limitations of traditional public address systems that only support downstream transmission, single-network architecture, and centralized control from equipment rooms, offering robust interactive functionalities.
● Supports unlimited zoning with flexible partition and group combinations that can be reconfigured anytime without additional wiring.
● Enables scheduled programming playback, operating automatically per predefined schedules for unattended operation. Supports manual or timed playback of various audio source types for daily schedule bells. Independent timing per zone allows simultaneous playback of different programs at varying volume levels across partitions.
● Terminal playback options: Host can sequentially download scheduled audio sources to terminals, or terminals can independently request programs from the host.
● Priority interruption paging: Central control room can page individual or all partitions via host. Telephone paging becomes available with telephone module integration.
● Intercom functionality: In multi-zone systems, concurrent one-to-many terminal paging is possible across partitions, with direct terminal-to-terminal paging communication.
● Remote Control: Accessible via any LAN or public network-connected computer without software installation—full system operation and modifications available through web browsers.
● Includes fire control center interface for automatic alarm interruption, supporting both short-circuit alarms (alarm cards) and network signal alarms. Active alarms display fire icons on corresponding partition interfaces for clear status visibility.
● Automatic playback resumption upon terminal reconnection, with instant partition information updates after modifications.
● Features more intuitive, user-friendly operation with drawer-style full keyboard input for real-time partition/group name editing.

ট্যাকট্ও এন্টেজ জেন রালোড

লিফো
আলাপন

翻译中...

Model	WEP5501
Screen Size	17 inches
Control Method	Touch-sensitive
Working Environment	Ambient temperature: 5-35ºC; Relative humidity: ≤75%; Atmospheric pressure: 86-106kpa
Timed Power Supply Load Capacity	Single-channel current: 2A
Signal-to-Noise Ratio for System Audio Signal	LINE: >70dB; MIC: >60dB
Distortion Level for System Audio	1kHz<0.5%
Standard Input/Output Level for System Audio Signals	LINE : 500mV±20mV; MIC :10mV±2mV / 0dBV
Self Power Consumption	AC 220V/50Hz/120W
Package Dimensions (L x W x H mm)	580x390x350
Machine Dimensions (L x W x H mm)	483x350x320
Gross Weight/Net Weight	23kg/16kg
